Roof cover is made of 1150g/sq.m high density polyethylene fabric coated with PVDF(Polyvinylidine Fluoride).
It is high quality at waterproof,flame retardant,UV resistant,heat insulating and will not sag,fade,rot or mildew.
The temperature resistance(℃) is from -40℃ to +120℃.
Roof cover is made of 1150g/sq.m high density polyethylene fabric coated with PVDF(Polyvinylidine Fluoride).
It is high quality at waterproof,flame retardant,UV resistant,heat insulating and will not sag,fade,rot or mildew.
The temperature resistance(℃) is from -40℃ to +120℃.
The roof frame to stretch the PVDF membrane is made of aluminium(6061-T6).
It is made of hot galvanizing steel,and we use the best surface treatment process for the steel---electrostatic powder spraying and hot galvanizing,it is high quality at resistance to corrosion and oxidation,also will be not fade.Color options:Black,White,Gray,Brown,etc
| Materials: | Roof cover is PVDF membrane |
|---|---|
| Roof structure is Aluminium | |
| Column and beam is hot galvanizing steel | |
| Weight: | 450kg(500kg with package) |
| Package: | Wood box(2.92x0.58x0.57m) |
| Anti-wind: | 12 grade(120km/h) |
| Anti-snow: | 75kg/sq.m |
| Installation: | 3 persons and 2-3 hours |
| Warranty: | 5 years |
| Life span: | 15-20 years |
| Roof colors: | Black,Grey,Yellow,Brown,Blue,White,Green,etc |
| Frame colors: | Black,White,Gray,etc |
| Container loading: |
32units/20ft container, 55units/40ft container without wooden case |
This carport is not only the beautiful apprearance,but has also been designed to withstand the extreme climate,especially is the high wind and heavy snow.It can withstand 120km/h wind speed.
This carport is well designed against the heavy snow.There are 6-8 aluminium pipes on the roof to support the heavy snow.Snow load exceed 75kg/sq.m(thickness of snow at 60-70cm).
The caports will be packed in wooden box to avoid something missing or damaging in the transport process.Please see the package size and weight as follows.
| Item | Carport size | Packing size | Packing weight | 20ft container |
|---|---|---|---|---|
| Single carport for 1car | 5.95(L)*3.1(W)m | 2.92x0.58x0.43m | 350kg | 40units |

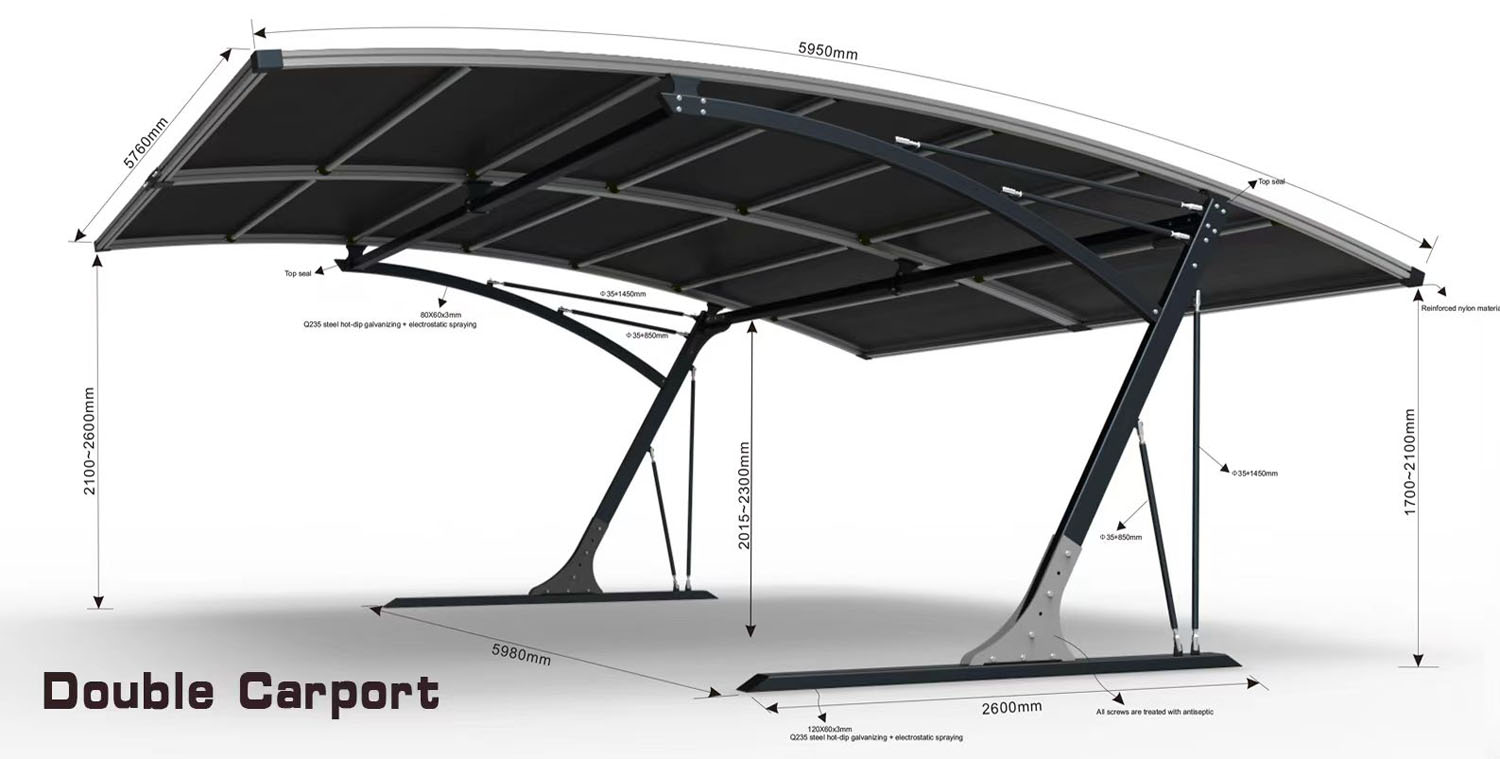

| Double carport for 2cars | 5.95(L)*5.98(W)m | 2.92x0.58x0.57m | 500kg | 32units |
| Triple carport for 3cars | 5.95(L)*8.85(W)m | 2.92x0.58x0.74m | 730kg | 24units |
| Quadruple carport for 4 cars | 5.95(L)*11.52(W)m | 2.92x0.58x0.84m | 840kg | 24units |
