Roof cover of this carport is made of 1150g/sq.m high density polyethylene fabric coated with PVDF (Polyvinylidine Fluoride) at surface.
It is high quality at waterproof,flame retardant,UV resistant,heat insulating and will not sag,fade,rot or mildew.The temperature resistance(ºC) is from -40ºC to +70ºC and the life span is at least 15 years.
Color options:Yellow,Gray,Blue,White,Brown,White,etc
Roof cover of this carport is made of 1150g/sq.m high density polyethylene fabric coated with PVDF (Polyvinylidine Fluoride) at surface.It is high quality at waterproof,flame retardant,UV resistant,heat insulating and will not sag,fade,rot or mildew.The temperature resistance(ºC) is from -40ºC to +70ºC and the life span is at least 15 years.Color options:Yellow,Gray,Blue,White,Brown,White,etc

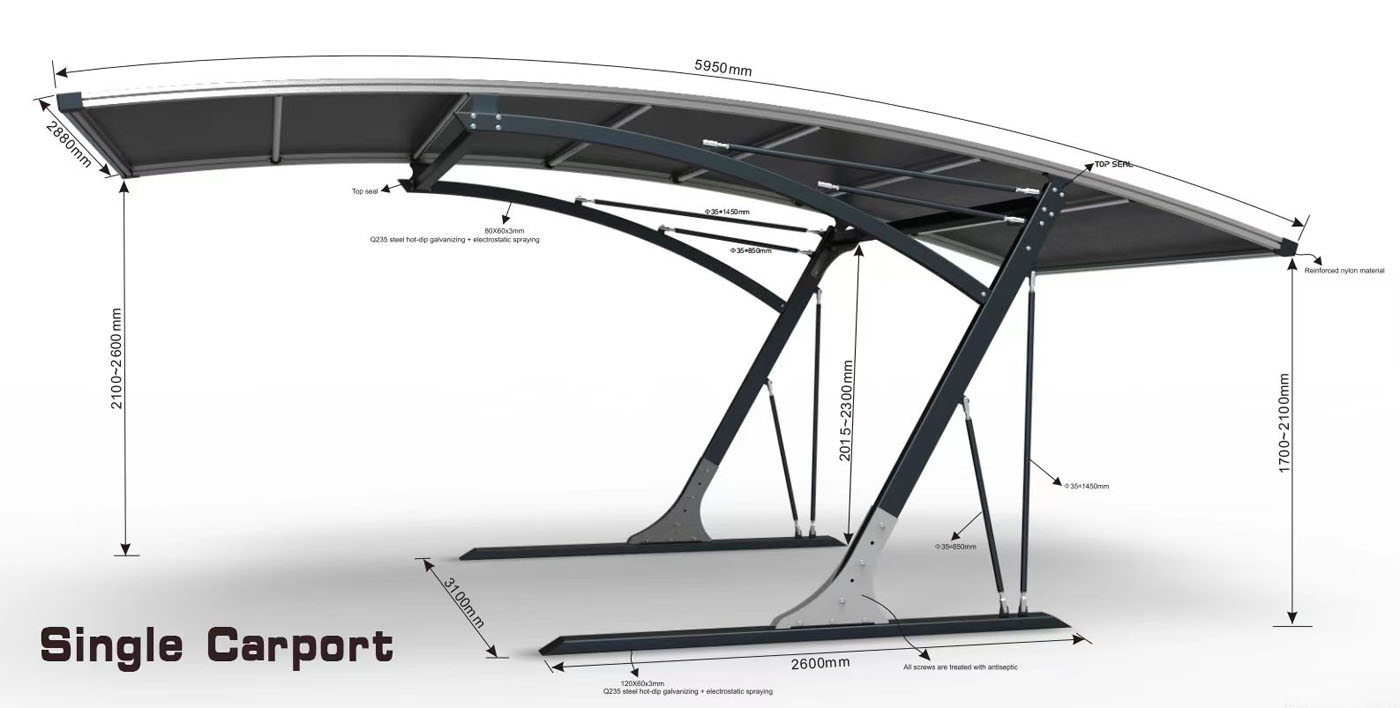

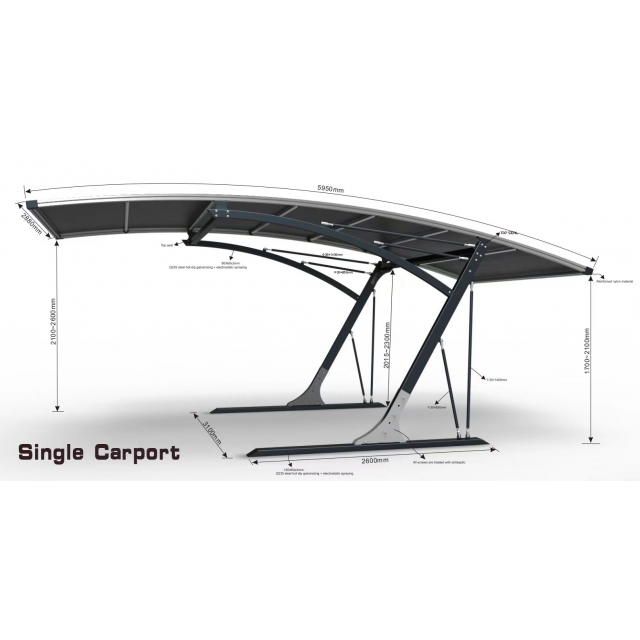

| Dimension: | 3m x 6m x 2.1m(W x L x H) for 1 car 6m x 6m x 2.1m(W x L x H) for 2 cars |
|---|---|
| Materials: | Roof cover is PVDF membrane Roof structure is Aluminium Column and beam is galvanizing steel |
| Weight: | 300kg for 1car 450kg for 2 cars |
| Package: | Plywood case |
| Anti-wind: | 10 grade(100km/h) |
| Anti-snow: | 75kg/sq.m |
| Fire Resistance: | DIN4102 B1/M2 |
| Life span: | 15-20 years |
| Labour: | 3 persons |
| Time of installation: | 2-3 hours |
| Color: | Yellow,Gray,Blue,White,Brown,White,etc |
| Container loading: | 40units/20ft for 1 car 32units/20ft for 2 cars |
| item | value |
|---|---|
| Type | Garages, Canopies & Carports |
| Commercial Buyer | Restaurants, Hotels |
| Season | Everyday |
| Room Space Selection | Not Support |
| Occasion Selection | Not Support |
| Holiday Selection | Not Support |
| Place of Origin | China,Jiangsu |
| Brand Name | EXPO |
| Model Number | EXC-1 |
| Frame Material | Metal Aluminum |
| Frame Finishing | Powder Coated |
| Pressure Treated Wood Type | Heat Treated |
| Sail Finishing | PVDF Coated |
| Roof Sail | 1150g/Sq.M PVDF Coated Membrane |
| Roof Frame | Aluminium 6061-T6(15HW) |
| Sheet | Tensioned Membrane structure with PVDF coating at surface |
| Color options | White,Yellow,Grey, Blue,Green,Brown,etc |
| Product Keywords | outdoor mobile carport,outdoor gazebo carports,outdoor canvas carport |
| Temperature Tolerance | -40℃ to +120℃ |
| UV Protection | UV resistant,Block out 98% of harmful UV rays |
| Windload and Snow load | 100-120km/h windload and 50kg/sqm snowload |
| Warranty Time | 10 years for frame and 5 years for PVDF Tensioned Membrane |
| Sail Material | PVC |
